| Description | Part.no. |
|---|---|
| Carburator | Weber 30/34 DFTH 3A1 |
| Waterpump | 83HF 8592 AC |
| Alternator, waterpump belt | Gates auto master 6363MC 0C |
| Oil cap | 79TF-6K614-AB |
| Management | Motorcraft 85GB 12A297 GA8L02 |
| Engine block | 205 85HM6015 BB (18K88) 87BG |
| Engine head | P9 - Unleaded |
| Intake manifold | 85HF 9425 RA |
| Compression pressure at starter power: 11-13bar(=159,5-188,5)/(measured: 95PSI=6,55bar) | |
| Fan |
| Description | Part |
|---|---|
| Bobine 1 220 522 012 | LMGTFY |
| Bosch electronic distributor. 82HF12100HA | LMGTFY |

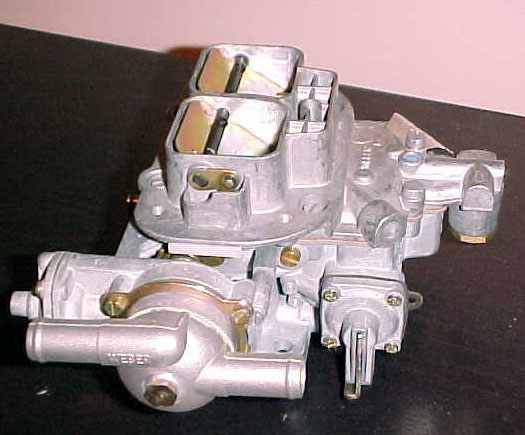

| Weber 32 DGAV 5A | Diagram Jetting info |
| Manifold 82hf-9425-DA for weber 32/36 38 | LMGTFY |
| Description | Size | |
|---|---|---|
| Main jets | 2x 140 | |
| Emulsion tube | F50/F6 | |
| Air correction | 165/160 secondary smaller | |
| Idle jets | 60/50 up to 65-70 | |
| Accel Pump jet | 50 (55,60) | |
| Fuel pressure | 2.5 - 3 psi (0,17 - 0,20 Bar) |

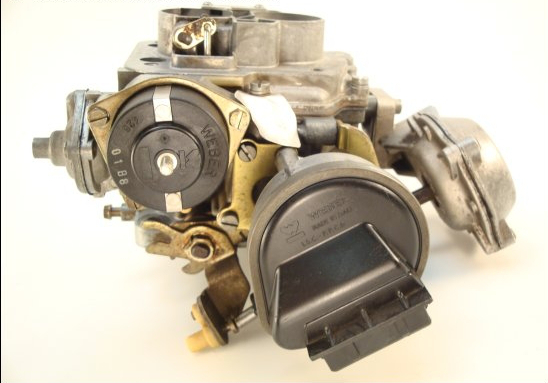

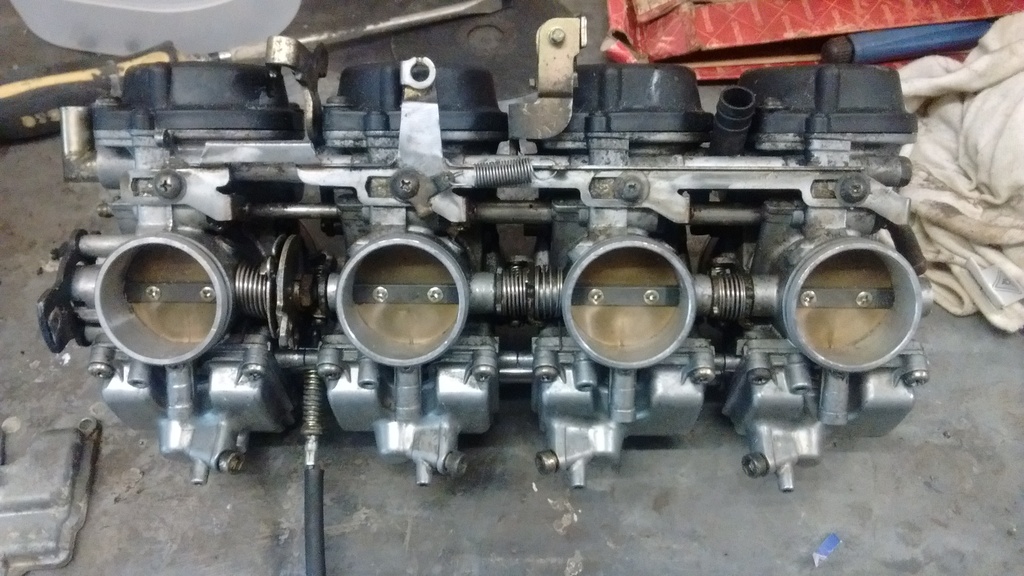

| Origineel 30/34dfth | Upgrade 32/36DGAV | R1 bike carbs |
|---|---|---|
 |  |  |

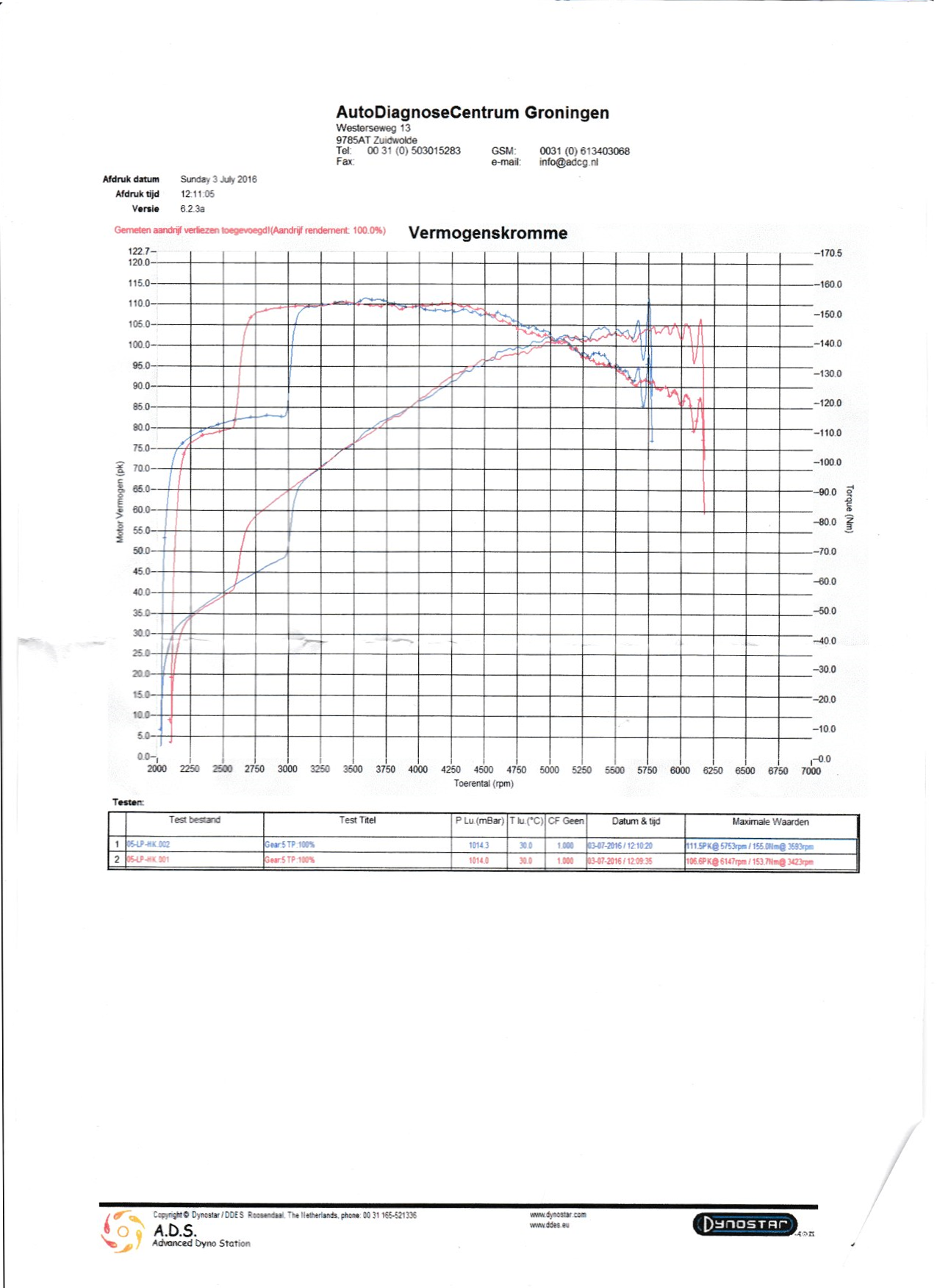

Gemeten Lelystad 111PK. Nadeel is dat idle adjust niet goed werkt en op top tekort komt. | Zou volgens Burton goed zijn tot 150PK. Trekt harder weg dan de 30/34. Ander inlaatspruitstuk wat ook op 38 past. Jets aangepast volgens schema. Waterchoke. Verwachting 130PK | R1 carb setup flowed net zoveel als een dure Weber 45DCOE setup getest op youtube Speciaal aangepast voor gebruik met 2 liter motor. Custom inlaatspruitstuk. Handchoke. Mag niet teveel brandstofdruk. Goede regelaar of pomp van Yamaha R1 (12V versie). Verwachting 140PK
Building R1 intake manifold

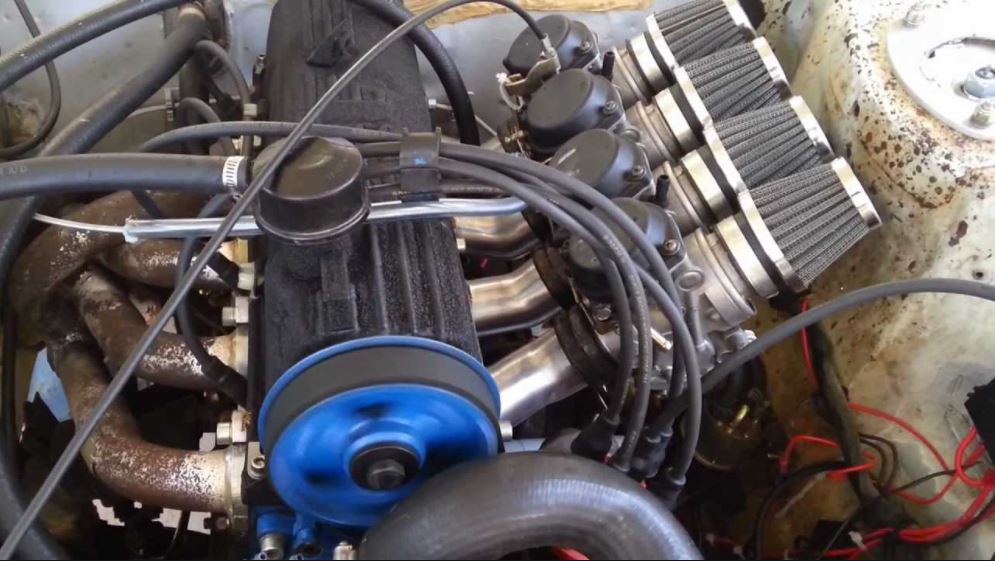

  Pinto R1 on youtube turbosport.co.uk build classic-ford.org build
|
| Description | Name/type | Sandlter | Europaspares | CBS | Rest |
|---|---|---|---|---|---|
| Fuel pump 0,38Bar | Pierburg E1F | Sandtler(99 euro) | Franky's VW (89 euro) | ||
| Fuel pump 2.5-3PSI | Facet 40105K | Facet #40105K (51 euro) | |||
| Fuel pump | Carter p60504 | Amazon ($79) | |||
| Pressure regulator | Europaspares (27,25) | ||||
| non return valve | Aluminum (15 euro) | Nylon (5,55euro) Aluminum 8,87euro | |||
| Fuel filler hose | Per inch(15,26euro/35cm (ex.porto 4-14pond)) | CarBuilderSolutions (24euro/50cm +9 euro shipping) | |||
| Reducer for heater | 15mm-12mm | ||||
| Tail lights | FF BLMC A 70mm OD Pageflip e-catalogue |
| 3/8" | 0,95cm |
| 5/16" | 0,79cm |
| 0,27 bar | 3,9 PSI |
| 0,38 bar | 5,5 PSI |
