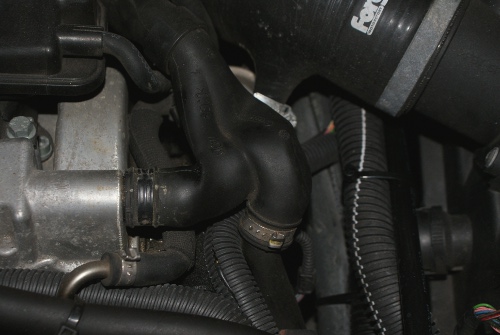

| Standard y-hose looks fine |  > |

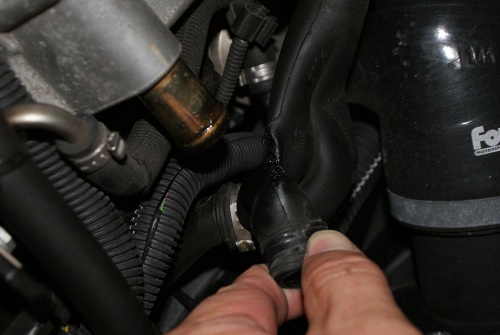

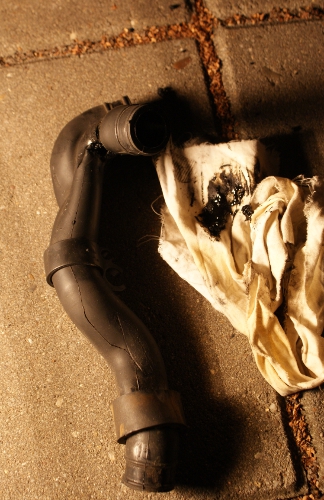

| But underneath is the leak |  |
| Gunk inside |  |
| Order new part from Viper performance, not as thick as some other replacement y-hoses (don't forget to order stainless worm drive clamps Norma TC16-27) |  |

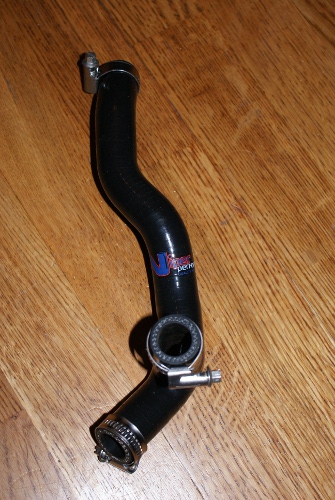

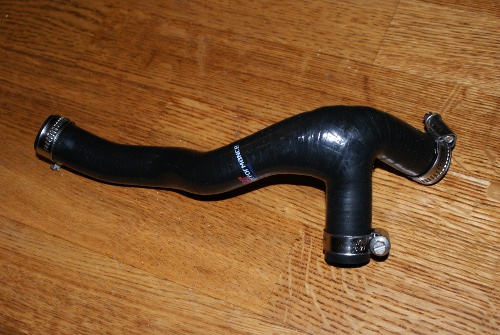

| Nice new part |  |

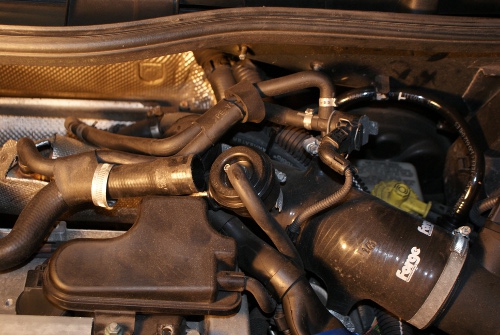

| First remove hose from DV |  |

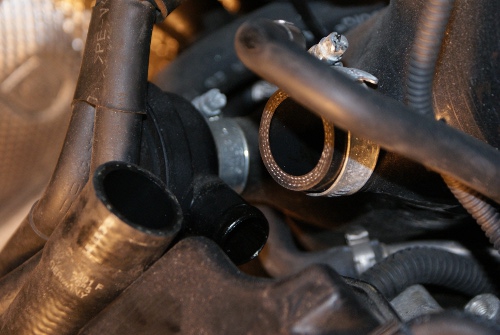

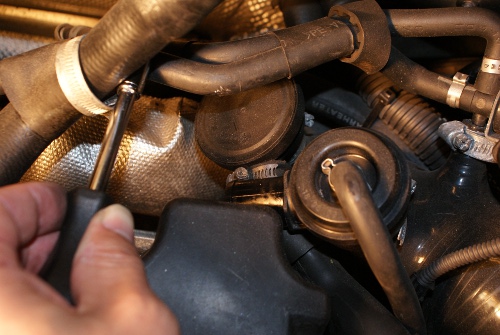

| You can see the 'hockey puck'(PCV) and reach the clamp |  |
| Remove the clamps and the y-hose. (and find out there's enough gunk in the hoses :( |  |
| Disconnect the vacuum line from the DV and remove the DV to get the new hose easy to the 'hockey puck' |  |

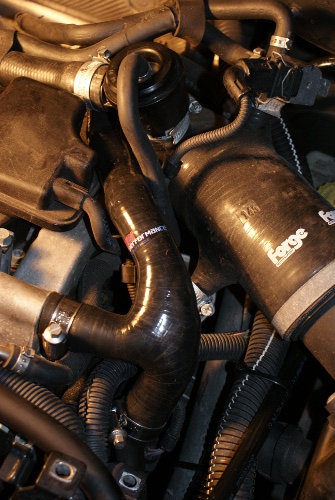

| Tighten the clamps and reconnect the DV |  |

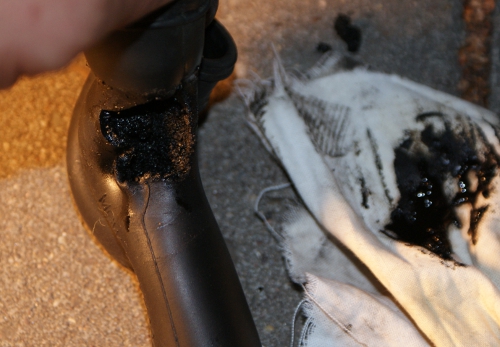

| A lot of gunk in the hose |  |

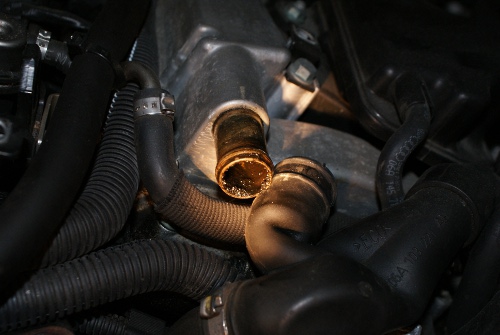

| Nasty hole |  |
| The plastic hose broke just underneath the y-hose. Time to replace it. The top was going to manifold but capped in brakebooster mod in pic 5 as #3. |  |

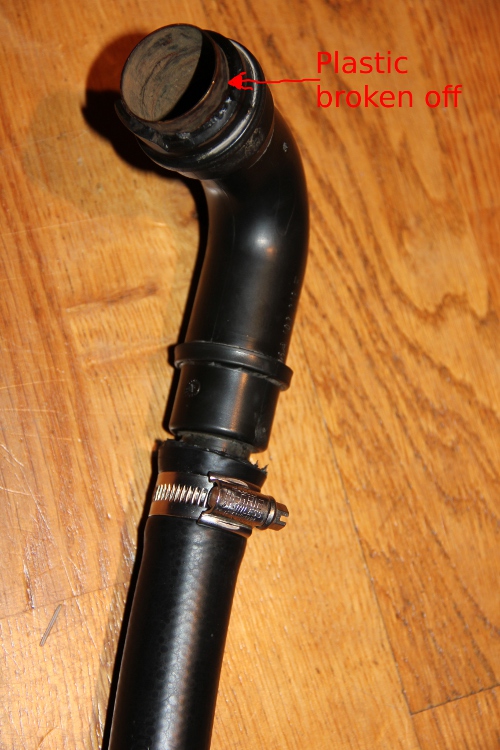

| Removed the unneeded t-piece and connected new hose. You can see also the crankcase part had plastic that was eroded and broken. |  |

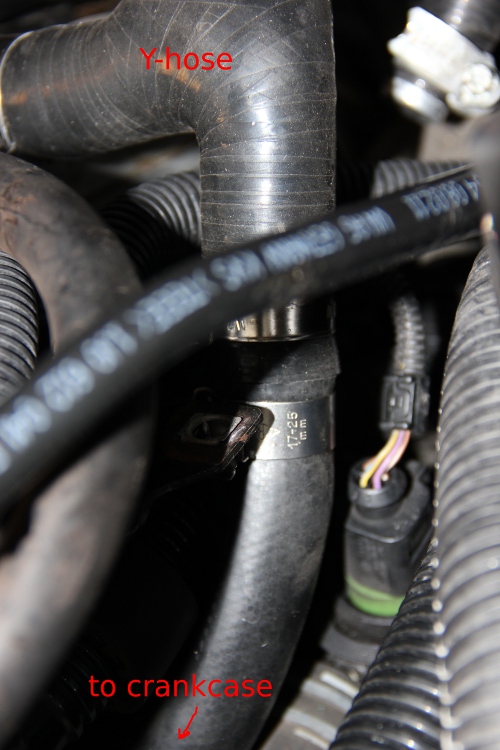

| Hose connected to the y-hose |  |

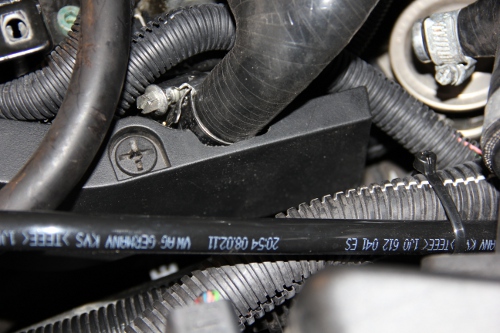

| After minor modification of cap it fits fine. |  |
Easy enough for everyone that can hold a screwdriver.
